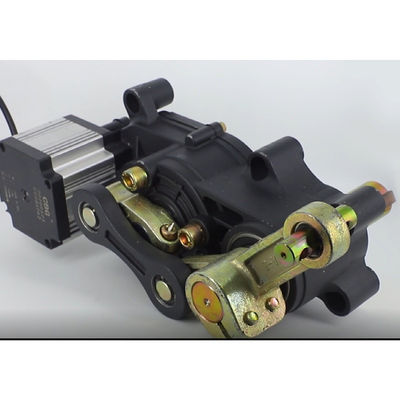

Fast Speed Boom Barrier Gate Mechanism with 1.5kgf.m Torque for Car Parking Area

Nama merek:	Jiayu
Nomor Model:	JY-DZ-CB-04
MOQ:	2 pcs
harga:	Dapat dinegosiasikan
Rincian kemasan:	Kemasan
Ketentuan Pembayaran:	Tt

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

Dokumen:

Aplikasi:

Gerbang Penghalang

Daya output:

Voltase:

DC 24V

Nilai arus:

Kecepatan pengenal motor:

1500r / mnt

Waktu Jatuh:

0,3 detik-0,8 detik

Torsi keluaran spindel:

1,5 kgf.m2

Kelas Isolasi:

tingkat perlindungan:

Menggunakan:

Banyak digunakan di gerbang jalan, mesin, dll

Menyediakan kemampuan:

500 pcs per bulan

Menyoroti:

Fast Speed Boom Barrier Gate Mechanism

1.5kgf.m Torque Boom Barrier Gate Mechanism

Car Parking Area Boom Barrier Gate Mechanism

Deskripsi Produk

Fast Speed DC24V Boom Barrier Gate Mechanism For Car Parking Area

Product Description

1.2s boom barrier gate Turnstile Gate Mechanism for car parking

The DC24V Boom Barrier Gate is a high-performance, fast-speed access control solution engineered for the demanding cycle of modern car parking areas, security checkpoints, and gated communities. Operating on a safe 24V DC power system, this gate mechanism combines rapid operation with exceptional durability.

Product Performance Characteristics

Its core utilizes an advanced servo or brushless DC motor system, allowing for an adjustable opening/closing speed to balance efficiency and safety. Designed for continuous, heavy-duty use, it features integrated intelligent anti-crushing technology, such as obstacle reversal and loop detector compatibility, ensuring reliable protection for vehicles and pedestrians. With a robust construction and weather-resistant rating (e.g., IP54 or higher), this boom barrier is the ideal choice for enhancing traffic flow and security in any 24/7 operational environment.

Specifications

Model Number	JY-DZ-CB-01
Usage	Barrier gate
Protect Feature	IP44
Speed (RPM)	1500r/min
Output Power	120W
Voltage	DC 24V
Rated Current	6A
Motor Rated Speed	1500r/min
Drop Time	0.3s-0.8s
Spindle Output Torque	1.5kgf.m

Key Features

Motor & Drive System: High-torque Servo / Brushless DC motor for quiet, efficient, and long-life operation.
Operating Speed: Adjustable high speed, typically ranging from 1.5 seconds to 6 seconds for a 90-degree cycle.
Power Supply: Safe and standard DC 24V.
Safety Features:
- Auto-Reverse Function: Immediately reverses direction upon detecting an obstacle (via torque control or infrared sensors).
- Loop Detector Interface: Built-in inputs for vehicle loop detectors to prevent the gate from closing on a car.
- Soft Start & Soft Stop: Prevents mechanical shock and ensures smooth, quiet operation.
- Manual Release: Integrated clutch allows for manual operation during power failures.
Control Options:
- Remote Control operation.
- Standard interfaces for connecting to access control panels.
Physical Construction:
- Durable aluminum or steel housing.
- Weatherproof design with a protection rating of IP54 or higher.
- Suitable for boom lengths typically up to 6 meters (20 feet).

Dimensions

Company Profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers. The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable. The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team.

Frequently Asked Questions

Q1: What is the MOQ?

A: MOQ depends on our clients demands, we welcome trial order before mass production. We generally recommend a minimum order of 2 units as a sample trial.

Q2: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q3: How about the payment method?

A: Standard products: 30% deposit, 70% balance payment before shipment.

Q4: How about the lead time?

A: Normally we have stock for the hot sale models of standard products. Regular products need 7-10 working days. The customized products need 15-20 working days.

Q5: How long is your warranty period?

A: One-year guarantee & Life-time technology support.
