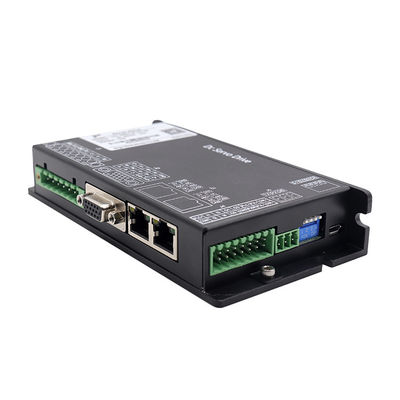

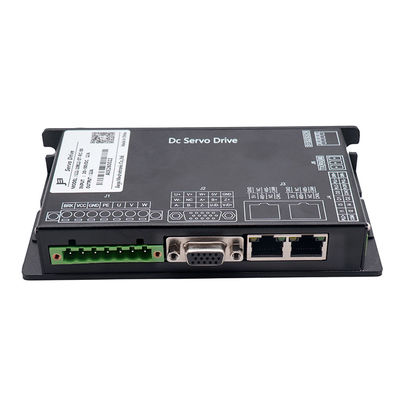

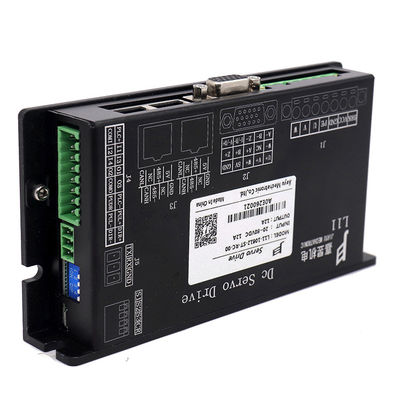

Low-voltage 200W 12A Servo Driver for Incremental Encoder DC Servo Motor with RS232 RS485 CAN Interface

Semua Kategori

Motor Servo Untuk Pelacak Surya

Motor Penggerak Truk Galik Listrik

Pengontrol Gerbang Putar

Hubungi kami

Ms. Chilli

Chillijy@jiayume.com

15218146199

15218146199

Hubungi sekarang

Low-voltage 200W 12A Servo Driver for Incremental Encoder DC Servo Motor with RS232 RS485 CAN Interface

Nama merek:	CSJY
Nomor Model:	GL11-10612-ST-RC-00
MOQ:	2 buah
harga:	Negotiate
Rincian kemasan:	Karton
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Sertifikasi:

Dokumen:

Masukan Daya:

DC24 ~ 80V

Umpan balik pembuat enkode:

Pembuat enkode tambahan

Komunikasi:

RS232, RS485, BISA antarmuka

Nilai Arus Keluaran:

Masukan digital:

Input sinyal tipe PNP/NPN 4 arah

Output digital:

Output sinyal tipe PNP/NPN 2 arah

kelebihan beban:

Beban = 100-300%.

Kelembaban Sekitar:

90% RH atau kurang (tanpa kondensasi)

Suhu lingkungan:

-20 hingga 55 ° C (tidak beku)

membela:

Input daya terbalik, fase ke sirkuit pendek fase, perlindungan over-tegangan busbar pendek 5V, perli

Menyediakan kemampuan:

5000PCS/Bulan

Menyoroti:

200W Servo Driver

12A DC Servo Motor Driver

Low-voltage Incremental Encoder Driver

Deskripsi Produk

Low-voltage 200W 12A Servo Driver for Incremental Encoder Servo Motor

The Low-voltage 200W 12A Servo Driver is a compact, high-performance digital drive designed specifically to control 48VDC permanent magnet synchronous servo motors (PMSM) equipped with incremental encoders. As the intelligent control core of the motion system, it receives high-level motion commands and translates them into precise current, velocity, and position control of the motor. Featuring advanced control algorithms, robust protection circuits, and flexible interfacing options, this driver delivers smooth, efficient, and reliable operation for a wide range of automation applications, from mobile platforms to precision industrial machinery.

Technical Specifications

Power Input	DC24 ~ 80V
Encoder Feedback	Incremental encoders (standard incremental, wire-saving, ABZ only without Hall) Absolute encoder (singleturn/multiturn, RS485 protocol) (only supported by AT hardware version)
Communication	RS232, RS485, CAN interface; supports both Modbus and CANopen protocols (-CO version)
Rated Output Current	12A
Ambient Temperature	-20 to 55°C (non-freezing)

Applications

This versatile servo driver forms the perfect control pair with a matching 200W 48V servo motor for demanding applications across industries:

Mobile Robotics & AGVs: Provides efficient, battery-friendly control for drive wheels, steering mechanisms, and robotic arm joints in automated guided vehicles and mobile platforms.
Precision Automation: Ideal for semiconductor equipment (wire bonders, die sorters), electronic assembly machines, and laser processing systems requiring micron-level accuracy.
Packaging & Material Handling: Drives conveyor synchronization, pick-and-place units, filling stations, and label applicators with high repeatability and speed.

Tag:

40W 24 Volt Motor Servo DC

2400 Garis Motor Servo DC 24V

Motor Servo DC 24V Dalam Sistem Kontrol

rincian produk

Rumah > Produk >

Motor Servo DC

Low-voltage 200W 12A Servo Driver for Incremental Encoder DC Servo Motor with RS232 RS485 CAN Interface

Semua Kategori

Motor Servo DC

AGV Servo Motor

Robot Servo Motor

Penggerak Servo DC

Penggerak Motor Servo DC

Mekanisme Gerbang Pintu Putar

Motor Gerbang Kecepatan

Motor Servo DC Torsi Tinggi

Motor Pompa Peristaltik

Motor Gerbang Penghalang

Motor Logistik

Motor Servo Untuk Pelacak Surya

Motor Servo DC 24V

Motor Servo DC Kecil

Pengemudi Motor Servo AC

Penggerak Gerbang Kecepatan

Kontroler forklift listrik

Motor Penggerak Truk Galik Listrik

Pengontrol Gerbang Putar

Low-voltage 200W 12A Servo Driver for Incremental Encoder DC Servo Motor with RS232 RS485 CAN Interface

Nama merek:	CSJY
Nomor Model:	GL11-10612-ST-RC-00
MOQ:	2 buah
harga:	Negotiate
Rincian kemasan:	Karton
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Nama merek:

CSJY

Sertifikasi:

Nomor model:

GL11-10612-ST-RC-00

Dokumen:

GL11 Servo Driver User Manu...18.pdf

Masukan Daya:

DC24 ~ 80V

Umpan balik pembuat enkode:

Pembuat enkode tambahan

Komunikasi:

RS232, RS485, BISA antarmuka

Nilai Arus Keluaran:

12a

Masukan digital:

Input sinyal tipe PNP/NPN 4 arah

Output digital:

Output sinyal tipe PNP/NPN 2 arah

kelebihan beban:

Beban = 100-300%.

Kelembaban Sekitar:

90% RH atau kurang (tanpa kondensasi)

Suhu lingkungan:

-20 hingga 55 ° C (tidak beku)

membela:

Input daya terbalik, fase ke sirkuit pendek fase, perlindungan over-tegangan busbar pendek 5V, perli

Kuantitas min Order:

2 buah

Harga:

Negotiate

Kemasan rincian:

Karton

Waktu pengiriman:

3 minggu

Syarat-syarat pembayaran:

T/T

Menyediakan kemampuan:

5000PCS/Bulan

Menyoroti:

200W Servo Driver

12A DC Servo Motor Driver

Low-voltage Incremental Encoder Driver

Deskripsi Produk

Low-voltage 200W 12A Servo Driver for Incremental Encoder Servo Motor

Technical Specifications

Power Input	DC24 ~ 80V
Encoder Feedback	Incremental encoders (standard incremental, wire-saving, ABZ only without Hall) Absolute encoder (singleturn/multiturn, RS485 protocol) (only supported by AT hardware version)
Communication	RS232, RS485, CAN interface; supports both Modbus and CANopen protocols (-CO version)
Rated Output Current	12A
Ambient Temperature	-20 to 55°C (non-freezing)

Applications

This versatile servo driver forms the perfect control pair with a matching 200W 48V servo motor for demanding applications across industries:

Mobile Robotics & AGVs: Provides efficient, battery-friendly control for drive wheels, steering mechanisms, and robotic arm joints in automated guided vehicles and mobile platforms.
Precision Automation: Ideal for semiconductor equipment (wire bonders, die sorters), electronic assembly machines, and laser processing systems requiring micron-level accuracy.
Packaging & Material Handling: Drives conveyor synchronization, pick-and-place units, filling stations, and label applicators with high repeatability and speed.

Tag:
