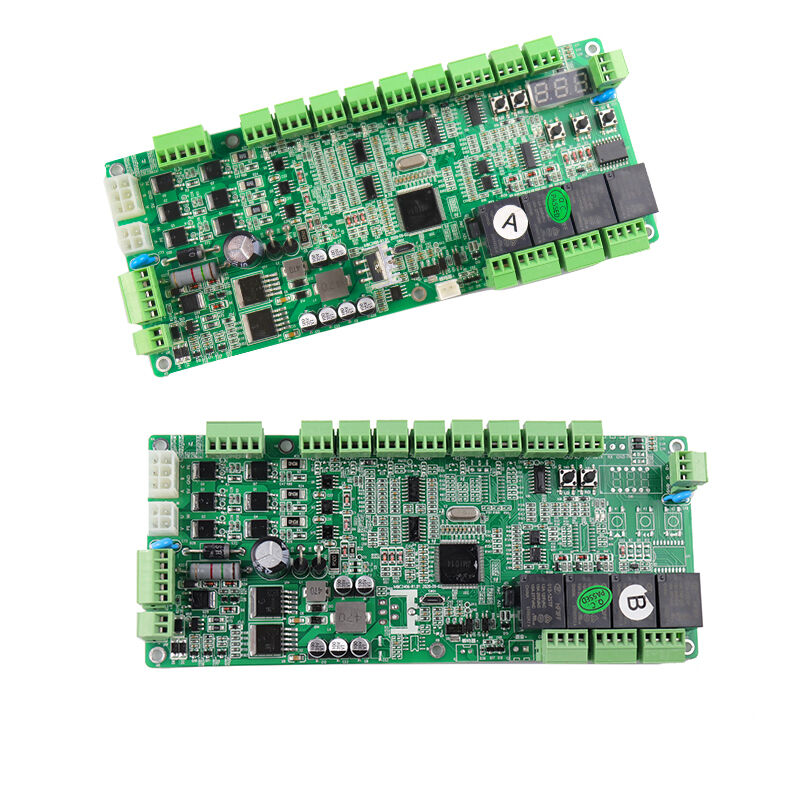

Turnstile Gate Control With 2400-line Position Feedback 24V 3A Brushless Servo Controller

Nama merek:	CSJY
Nomor Model:	GMBC2406
MOQ:	2
harga:	Negotiate
Rincian kemasan:	Karton
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

Catu Daya Input:

DC24V, koneksi daya ganda, 150W/6.5A di satu sisi direkomendasikan; Sambungan daya tunggal, 300W dir

Motor adaptor:

DC Brushless Motor di bawah 60W dengan umpan balik posisi 2400 baris

Modus Komunikasi:

RS232 Serial Communication, Modbus Protokol Pendukung

Power-off:

Baterai DC12V, atau modul kapasitor super opsional

Sensor inframerah:

6 Antarmuka Independen, PNP, NPN Biasanya Tipe Kolektor Terbuka dan Terbuka

Output suara:

Eksternal 8W 4Ω speaker

perlindungan anti-jepit:

Deteksi ganda+posisi+saat ini, sensitivitas yang dapat disesuaikan

Efek kontrol:

Kecepatan terbuka cepat, dan stabil dan tidak bergetar

Lingkungan kerja:

-20 ℃ ~ 55 ℃

Aplikasi:

Gerbang ayun, gerbang kecepatan, pintu putar tripod, gerbang geser

Menyediakan kemampuan:

5000 buah/bulan

Deskripsi Produk

Turnstile Gate Control With 2400-line Position Feedback 24V 3A Brushless Servo Controller

Product description

This system consists of access gate control board, brushless servo motor, servo control technology, real-time

detection of motor position, self-learning load curve without external encoder, physical anti-pinch protection and

adjustable sensitivity. Support access mode settings such as card swiping, freedom and prohibition at the entrance and exit;It has the logic detection of illegal intrusion, trailing traffic, detention, reverse traffic, infrared anti-pinch, etc., and is suitable for access gate equipment such as speed gate/swing gate, flap gate/sliding gate, etc.

Technical parameter

Input power supply	DC24V, dual power connection, 150W/6.5A on one side is recommended; Single power connection, 300W recommended;
Adaptor motor	DC brushless motor below 60W with 2400-line position feedback
Communication mode	RS232 serial communication, supporting Modbus protocol
Power-off	DC12V battery, or optional super capacitor module
Infrared sensor	6 independent interfaces, PNP, NPN normally open, open collector type
Voice output	external 8W 4Ω speaker
Working environment	-20℃ ~ 55℃, humidity below 90% (no condensation)

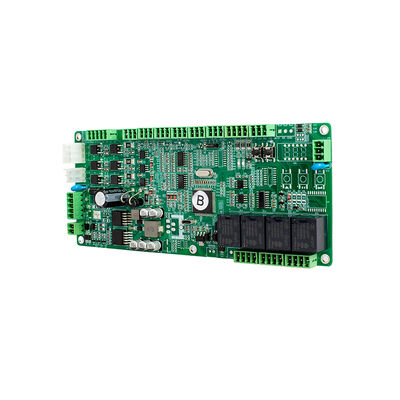

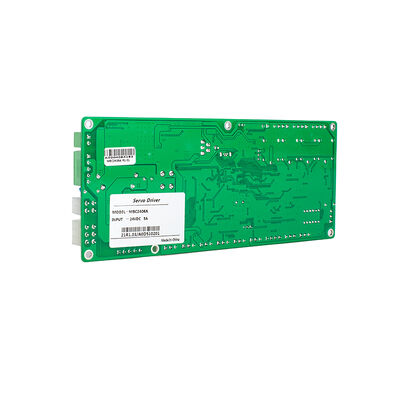

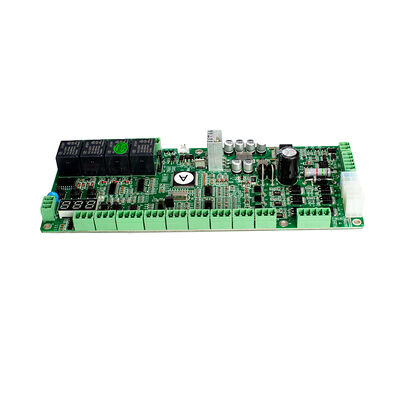

Turnstile Gate Control With 2400-line Position Feedback 24V 3A Brushless Servo Controller 0

Turnstile Gate Control With 2400-line Position Feedback 24V 3A Brushless Servo Controller 1

Application

This control board suitable for swing gate, speed gate, sliding gate, tripod turnstile, etc

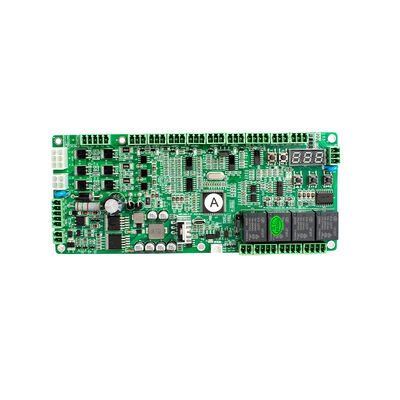

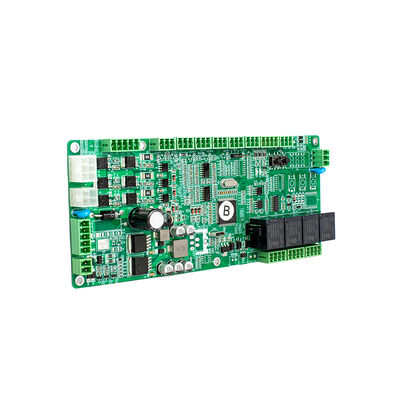

Turnstile Gate Control With 2400-line Position Feedback 24V 3A Brushless Servo Controller 2

Turnstile Gate Control With 2400-line Position Feedback 24V 3A Brushless Servo Controller 3

RFQ

1: Are you trading company or manufacturer ?

We are a professional barrier gate manufacturer, our experience more than 10 years.

2. Do you provide OEM service?

Yes, we can offer OEM services as follows: 1) We can print your logo on barrier gate. 2) We can customize barrier arm size to your needs.

3. Lead time for standard item?

1-50 sets: 3-5 working days; 50-100 sets: 6-10 working days; 100-500sets: 11-20 working days. For custom-made logo, 3-10 working days longer.

4. Do you provide quality guarantee/warranty and after sale service?

We have a one-year standard warranty, excellent after-sales service.

5. Do you provide samples ?

No,we don't provide free samples. The MOQ of our products is 1pc.

6. How about the payment method?

T/T or Alibaba.

7. What kind of technical support you would provide?

We have professional R&D and technical team,you have any technical problem of product.

8. How to ship?

By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.

Pengontrol Gerbang Putar Tripod
