Turnstile Gate Controller Support 16 Pairs Sensor Interface for Metro Flap Barrier Gate

Nama merek:	CSJY
Nomor Model:	JMC1810-ST-RP-16
MOQ:	2
harga:	Negotiate
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

Dokumen:

Tegangan Masukan:

DC 24 ~ 30V

Arus referensi:

3A satu sisi

Masukan sensor inframerah:

16 PASANG, Mendukung PNP atau NPN

Antarmuka komunikasi:

RS232/RS485/BISA

Perlindungan perangkat keras:

Tegangan di bawah, arus berlebih, pembalikan masukan

Antarmuka pemadam kebakaran:

Masukan NPN terpasang

Suhu lingkungan kerja:

-20℃ ~ 55℃

Aplikasi:

Penghalang Gerbang Flap

Menghitung keluaran:

Masuk|keluar dengan dua cara, keluaran simpul kering

Tombol debug tabung digital:

Di atas kapal

Menyediakan kemampuan:

1000 buah

Deskripsi Produk

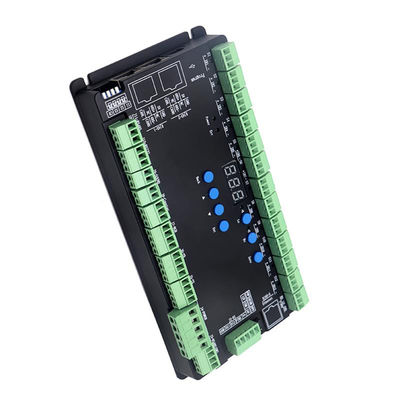

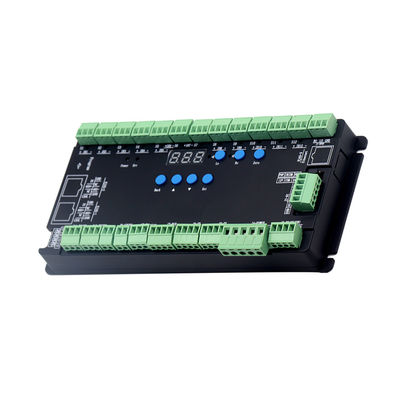

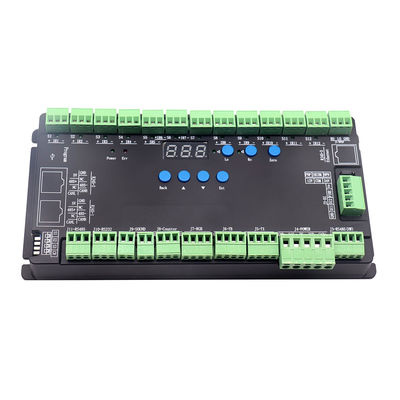

Turnstile Gate Controller Support 16 Pairs Sensor Interface for Metro Flap Barrier Gate

Product Description

The Turnstile Gate Controller with 16 Pairs Sensor Interface is a high‑capacity control unit engineered for metro flap barrier gates. Designed to manage up to 16 independent infrared sensor pairs, it delivers exceptional detection accuracy and system responsiveness in high‑throughput transit environments. Acting as the central logic controller, it processes sensor inputs to coordinate flap opening/closing, direction control, anti‑passback, and safety interlocking. With robust industrial construction and advanced fail‑safe mechanisms, this controller ensures reliable, 24/7 operation in demanding access control applications.

Features

① 16‑Pair Sensor Management – Supports up to 16 infrared sensor pairs, providing comprehensive coverage for pedestrian detection, position tracking, and safety zones along the flap barrier passage.

② High‑Speed Processing – Real‑time microprocessor ensures instant response to beam interruptions, enabling smooth flap operation even during peak passenger flow.

③ Integrated Safety Logic – Built‑in anti‑pinch and obstacle detection algorithms prevent flap closure when a passenger or object is detected, enhancing user safety.

④ Directional & Anti‑Passback Control – Manages entry/exit logic and prevents unauthorized tailgating or piggybacking.

⑤ Sound and light control: Welcome light, pass light, RGB tricolor light, status light,Speaker (8W 4Ω), Buzzer (12V 100mA)

⑥ Infrared sensor input: PNP|NPN NO|NC 12V|24V,12 independent IR interfaces on board,External IR expansion board available

Applications

Metro and subway flap barrier gates
Automated fare collection (AFC) systems in high‑traffic transit hubs
Airport security checkpoint turnstiles
Access control for business parks, government buildings, and data centers
Stadiums, amusement parks, and large venues requiring high‑throughput pedestrian management
Industrial facilities with strict personnel access requirements
